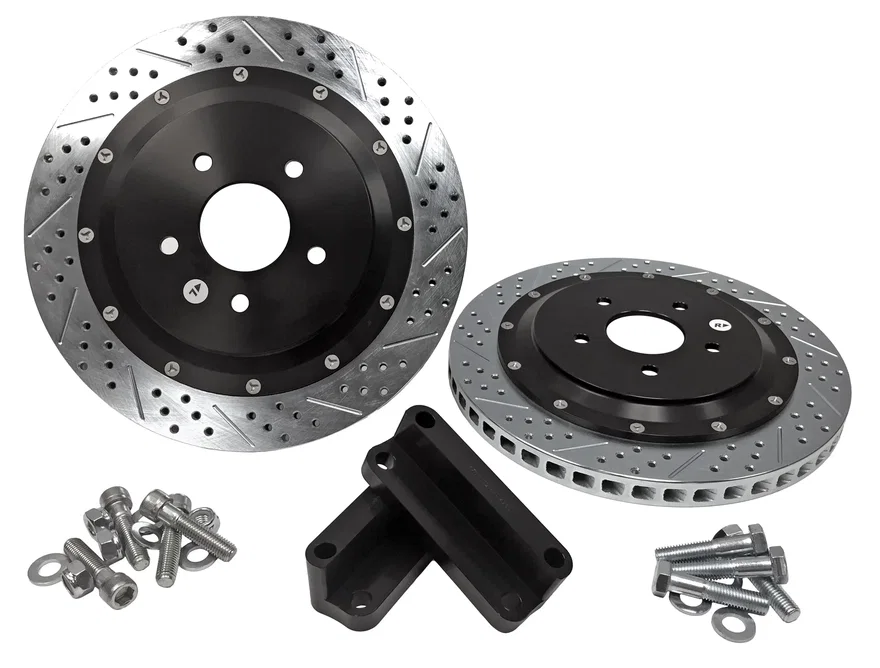

Baer Brake Systems EradiSpeed+ Disc Brake Rotors Rear
Part # 2302021SKU BAE2302021
Set your vehicle above for a fit verdict. 4 vehicles listed below.
| Brand | Baer Brake Systems |
|---|---|
| Part type | Disc Brake Rotor Set |
| Position | Rear |
| ABS Tone Ring Included | No |
| Applications | Chevy Corvette C5 97-04 |
| Axle | Rear |
| Brand | Baer Brakes |
| Category | Brake |
| Center Hole Diameter | 2.78 in |
| Construction | Two Piece |
| Conventional Or Drum-In-Hat Type Rotor | Drum-In-Hat |
| Directional or Non-Directional Brake Surface | Directional |
| Disc Finish | Zinc Plated |
| Discard Thickness | .92 in |
| Emission Code | 6 |
| Export Description | Brake Components |
| Floating | Yes |
| Grade Type | Performance |
| Hat Finish | Anodized |
| Inside Diameter | 7.48 in |
| Material | Cast Iron w/Aluminum Hat |
| Min Wheel Dia (verify using template) | 18 in |
| Mounting Bolt Hole Circle Diameter | 4.75 in |
| Mounting Bolt Hole Diameter | .56 in |
| Mounting Bolt Hole Quantity | 5 |
| Nominal Thickness | 1.02 in |
| Outside Diameter | 14.00 in |
| Overall Height | 1.78 in |
| part type | Disc Brake Rotor Set |
| Rust Resistant Coating | Yes |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 5 |
| UPC / GTIN | 00844165004158 |
| Warranty | Manufacture Limited 1 Year Warranty Warranty |
- Larger Than Stock Rotor for Increased Brake Torque and Reduced Stopping Distance (Use Template Below to Verify Wheel Fitment including Spare Tire/Wheel))
- Direct Replacement, Premium Performance 2-Piece Rotor Upgrade
- Purpose-Cast with Increased Mass in Friction Area for Better Heat Absorption
- Directional/Curved Vane Design to Maximize Air Flow for Better Heat Dissipation
- Black Anodized, 6061-T6 Billet Aluminum Hat
- Premium NAS Stainless High-Grade hardware
- Slot, Drill, Zinc Plated Rotor Finish
- New Caliper Anchor Relocation Brackets Included
- Provides Enhanced Visual Appearance
Description
The Baer EradiSpeed+1, 2-piece rotor upgrade features a premium, larger diameter than stock, purpose-cast rotor mounted to a black anodized, 6061-T6 aluminum hat with NAS aircraft grade hardware. EradiSpeed+1 rotors are manufactured from high-quality iron with increased mass in the friction area. Their curved-vane design promotes greater airflow and improved heat dissipation, helping them outperform the factory rotors they replace. A slotted and drilled friction surface provides an escape path for dust and gases produced during braking, resulting in a more consistent pedal feel and braking performance. The rotors are also zinc-plated to help resist rust and corrosion. The EradiSpeed+1 is a direct-bolt-on system designed for simple installation, with no brake bleeding required. NOTE: Slot-only versions are available (and recommended) for Autocross, Track-Day, Etc. conditions. Please contact Baer directly to place your order.
More from Baer Brake Systems
| 2261048 | $979.93 |
| 902018-220 | $370.93 |
| 901930-220 | $370.93 |
| 2301072-2 | $1,512.12 |
| 53023-020 | $372.99 |
| 2141019 | $1,049.93 |
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2004 - 2009 | Cadillac | XLR | - |
| 1997 - 2000 | Chevrolet | Corvette | Base |
| 2001 - 2004 | Chevrolet | Corvette | Base, Z06 |
| 2005 - 2013 | Chevrolet | Corvette | Base |
